CISA C2000

CISA C2000

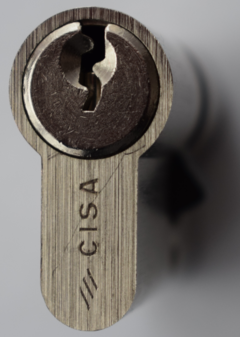

C2000 least.png
Name CISA C2000
Manufacturer CISA
Lock Type Cylinder
Lock Design Pin-tumbler
Security Rating(s) EN 1305:2005
Specifications
# of Components 5
Component Type Pin-tumbler
Related Locks
CISA C3000


The C2000 is a EN 1303:2005-rated pin-tumbler lock made by CISA. CISA recommends them for securing the secondary accesses to residential buildings, shops and offices. Keys for the C2000 are free to copy. One key pin and one driver pin made of steel provide some drill protection but unfortunately there is no protection against dynamic methods. The CISA C3000 is an improved version of the C2000.


Principles of operation

See also: Pin-Tumbler (Principles of operation)

The C2000 contains five pin-tumbler pairs. One pin chamber contains a standard driver, two have spools, and two have standard drivers with a single wide serration on both ends. Although the C2000 appears quite precisely manufactured, the shear-line was ground, which lowers the amount of anti-picking protection this lock offers. The C2000 has a paracentric keyway. The keyway is not particularly restrictive, although the curve in the lower right side of it makes counter-clockwise tensioning quite unstable due to the tensioner slippage.

Disassembly instructions

To disassemble a double euro cylinder, use of a pinning shoe is the preferred method.

Other possibility is to use a segmented follower, but that requires that both cores are pulled out a bit to allow a cam removal. Then a core should be rotated to approximately 4:30 or 7:30 o'clock position (135 degrees either clockwise or anti-clockwise) to prevent driver entering a gaps for the cam clutch. Then a segmented follower can be used to remove the core.

Vulnerabilities

The CISA C2000 is vulnerable to one or more of the following:
